Advance Wireless AccessPoint - Latest & Fastest Wi-Fi 6 Tech

NX-AP5680-W6 - 802.11ax 2400 Mbps Wireless Access Point, Seamless Roaming 2x2 MU-MIMO Dual-Band - PoE Injector

Nodexon’s NX-AP5680-W6 is an advance wireless access point with the latest and fastest Wi-Fi 6 (802.11ax) technology. It comes with a built-in IoT Module wall plate that is specifically designed for Hotels. It supports Universal socket standards. But it is also designed to be integrated with multiple Gb ELAN ports that support extended connectivity to cater IPTV or equipment application for office use. NX-AP5680-W6 is designed to provide your business with high-end coverage, easy installation and management. Making sure that better coverage is provided to the user.

Key Features

Wi-Fi 6 Dual-Band 802.11ax Technology
Wall Plate Access Point
Built-in IoT Module
HD IPTV Application
AI Wireless Optimization
OFDMA, MU-MIMO and BSS Technology

Similar Models

NX-AP7550-C6

Wi-Fi 6 Dual-band Indoor AP (12-Stream)

NX-AP7540-C6

Wi-Fi 6 Selectable Dual-band Indoor AP

NX-AP6650-C5

Dual Band Wireless Ceiling AP

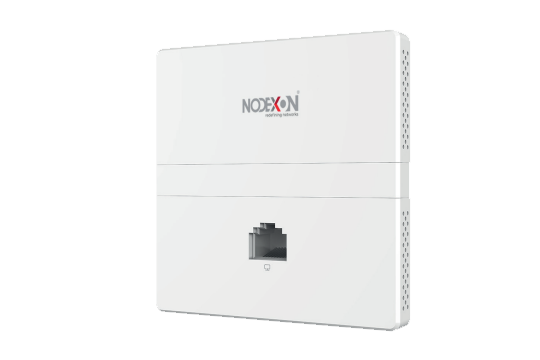

NX-AP5610-W5

750Mbps AP wireless wall mount

Performance

Support concurrent 802.11a/n/ac/ax and 802.11b/g/n/ax
802.11ax RF chip
MU-MIMO Support
4 100/1000Mbps RJ45 downlink ports

Network Management

Telnet, SSH, TFTP, Web
SNMPV1,V2c,V3
Syslog / Debug
FAT/FIT/MACC mode switching
1024 Max Users

Service Quality

Application: SMBs, education institutions, cafés, entertainment venues
Indoor Environment

Energy Flow

802.3af Power Over Ethernet
12.95W Power Consumption
-10°C~50°C Operating Temperature
-40°C~70°C Storage Temperature

IP

Static IP Address
Multicast – IGMP Snooping
1024 Clients Per AP

Security Policies

CPU Protection Policy
NFPP Support
SSID Based Speed Control
SMS Authentication

Protocol

802.11a/n/ac/ax and 802.11b/g/n/ax

Operating Bands

2.4G ~ 2.483GHz , 5.150～5.350GHz

Spatial Streams

4 spatial streams, 2x2 MIMO

Antenna Type

Omnidirectional Antenna

Antenna Gain

3dBi (2.4GHz),

Power Supply

Local Power Supply (DC)

IoT Protocol

Support Bluetooth5.0（BLE), Zigbee

IP Rating

IP41

MTBF

250,000 hours

Maximum Clients

1024

BSSID Capacity

Max Throughput

Maximum throughput of 2.4G: 574Mbps Maximum throughput of 5G: 1.2Gbps Maximum throughput per AP: 1.775Gbps

Service Ports

Front：4 10/100/1000Mbps Ethernet ports Rear：1 10/100/1000Mbps uplink port

Data Encryption

WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)

SMS authentication

Supported

Safety Standard

EN/IEC 62368-1

EMC Standard

EN301 489, EN55032, EN55035

Anti-theft

Standard: Ordinary Screws

IPv4 Address

Static IP address or DHCP
